IMPATT PULSE GENERATORS

Millimeter Wave Components

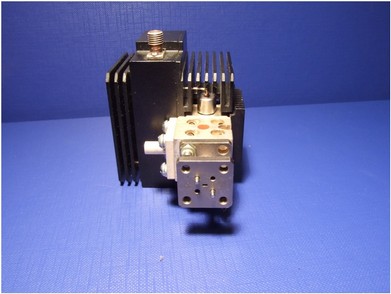

Insight IMPATT Pulse Generator at 35 GHz, 94 GHz, and 140 GHz
with Pulse output power 10-70 Watt



Advantages:
  • High output power, pulse output power 10- 70 Watt
  • Compact size
  • High reliability
  • Ruggedized design
  • Solid State

Description
Insight Product Co. IMPATT Diodes (Pulse and CW) are waveguide mountable and hermetically sealed.

Pulse IMPATT Generators

Model number

IP-35

IP-94

IP-140

Frequency, GHz

35

94

140

Output Power, Watt

70.0

20.0

10.0

Max. Generator instability

10^-4

10^-4

10^-4

Pulse duration, ns

100-250

50-100

50-100

Pulse repetition period, kHz

10-30

10-30

10-30

Output VSWR, max.

1.5

1.5

1.5

Output waveguide

WR-28 (or WR-22)

WR-10

WR-8

Output flange

UG-383/U (or UG-381/U)

UG-387/UM

UG-387/UM

Power Supply, DC

+12 V, -12 V, +90 V

+12 V, -12 V, +24 V

+12 V, -12 V, +24 V
