BWO-BASED FREQUENCY SYNTHESIZERS WITH PHASE-LOCK LOOP (PLL)

Millimeter Wave Components
INSIGHT PRODUCT BWO-BASED
FREQUENCY SYNTHESIZERS WITH PHASE-LOCK LOOP (PLL)



FS 52-79 GHz; 78-118 GHz; 118-178 GHz; 179-263 GHz; 258-375 GHz; 370-535 GHz; 526-714 GHz, 667-857 GHz, 789-968 GHz; 882-1111 GHz

Advantages:
  • High output power
  • Extremely stable frequency
  • Wide tunability, Controlled by IEEE or manually
  • Possibility of frequency and amplitude modulation
  • Operates independently in free running mode as generator or with microwave signal generator as synthesizer
  • Ease of control and operation
  • High reliability

Typical applications:
EPR, NMR/ MRI, Gas spectroscopy, Plasma diagnostics, millimeter and sub-millimeter wave network analyzers, heterodyne receivers, Gyrotron experiments etc.

Description

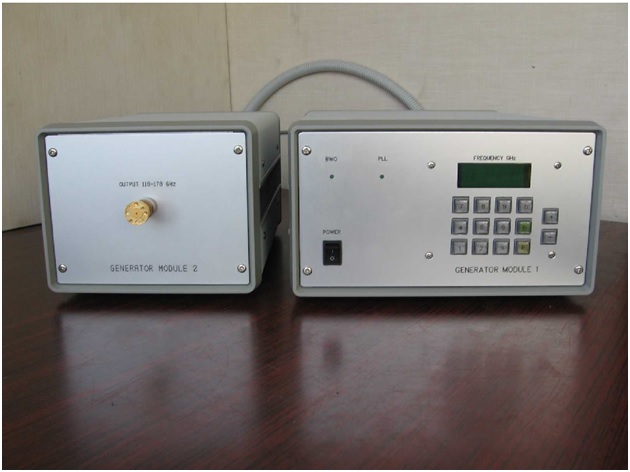

The Insight Product Synthesizer, Insight FS, is manually- or remotely-controllable mm-wave/ sub-mm- wave full band waveguide synthesizers with high output power, wide frequency range, excellent modulation characteristics and great ease of operation.

The Insight FS can be operating free running generation or phase-frequency synchronization mode by Phase-lock Loop (PLL) with microwave signal generator up to 20 GHz.

The Insight FS can be controlled by an external computer through General Purpose Interface Bus (GPIB) or internal controller. Computer sets the BWO frequency and the RF frequency of the reference oscillator, which is under GPIB control.



Frequency range &

Typical output power



52-79 GHz: 20-80 mW

78-118 GHz: 20-80 mw

118-178 GHz: 20-50 mW

179-263 GHz: 10-30 mW

258-375 GHz: 10-20 mW

370-535 GHz: 4-15 mW

526-714 GHz: 4-15 mW

667-857 GHz: 4-15 mW

789-968 GHz: 3-8 mW

882-1111 GHz: 2-8 mW









Frequency stability

5*10-8 or up to 5*10-11 with

microwave signal generator

up to 20 GHz.



Control and Programming



A. Manually by keyboard on front panel

B. Remotely by computer through GPIB



Modulation



Fast frequency modulation by

external analog voltage.



Data input/output



IEEE 488



AC supply



115V, 60 Hz, 100 W



Rated temperature range



+5°...+40°C



Humidity



£ 95%



Insight Product Co. Partial Customer List:
NASA; Jet Propulsion Laboratory; NIST; MIT; Harvard University, Cornell University; UCLA; UCSD, UC-Davis, SUNY-Stony Brook, Argonne National Laboratory, United States Naval Research Laboratory, Los Alamos National Laboratory; Raytheon Corp., Microsemi Corp., ETH-Zurich, Switzerland; SRON Lab for Space Research, Netherlands; Friedrich-Alexander Univeristy at Erlangen-Nurnberg, Germany; Seoul National University, South Korea; Okinawa Institute of Science and Technology, Japan; National Institute of Information and Communications Technology, Japan
