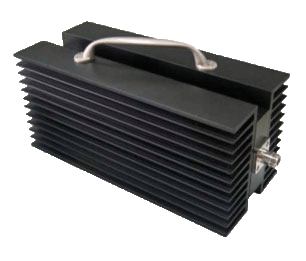

Fixed Attenuator 100W~500W (DC-18GHz)
|
Coaxial Fixed
Attenuators...100W-500W DC-18GHz |
|
|||||
|
Model Number |
Average Power(W) |
Peak Power(KW) |
Frequency Range(GHz) |
Max VSWR |
Nominal
Attenuation Value(dB) |
Connector Type |
|
DTS150G(F) |
150 |
1 |
DC-18 |
1.30-1.45 |
3,6,10,20,30, |
N,SMA,TNC |
|
40,50 |
||||||
|
DTS150G-A |
150 |
1 |
DC-18 |
1.25-1.45 |
3,6,10,20,30, |
N,SMA,TNC |
|
40,50 |
||||||
|
WDTS150 |
150 |
5 |
DC-10 |
1.15-1.50 |
3,6,10,20,30,40 |
N,7/16 |
|
DTS200 |
200 |
10 |
DC-4 |
1.20-1.40 |
10,20,30,40-50 |
N,7/16 |
|
WDTS200 |
200 |
5 |
DC-10 |
1.15-1.45 |
10,20,30,40 |
N,7/16 |
|
DTS200G(F) |
200 |
1 |
DC-18 |
1.25-1.50 |
10,20,30,40,50 |
N |
|
DTS250 |
250 |
10 |
DC-4 |
1.20-1.40 |
10,20,30,40-50 |
N,7/16 |
|
DTS250-B |
250 |
5 |
DC-5 |
1.15 |
40 |
N,7/16 |
|
WDTS250 |
250 |
5 |
DC-10 |
1.20-1.45 |
10,20,30,40 |
N,7/16 |
|
WDTS250-C |
250 |
5 |
DC-10 |
1.20-1.45 |
10,20,30,40 |
N,7/16 |
|
DTS250G(F) |
250 |
1 |
DC-18 |
1.25-1.55 |
10,20,30,40,50 |
N,TNC |
|
DTS300 |
300 |
10 |
DC-4 |
1.20-1.50 |
10,20,30,40-50 |
N,7/16 |
|
DTS300GH(F) |
300 |
1 |
DC-18 |
1.20-1.55 |
30 |
N |
|
WDTS300 |
300 |
5 |
DC-10 |
1.25-1.45 |
30,40-50 |
N,7/16 |
|
DTS350G(F) |
350 |
1 |
DC-13 |
1.30-1.50 |
6,10,20,30,40 |
N |
|
DTS350GH |
350 |
1 |
DC-4 |
1.30 |
30 |
N |
|
DTS400 |
400 |
10 |
DC-4 |
1.20-1.50 |
10,20,30,40,50 |
N,7/16 |
|
WDTS400 |
400 |
5 |
DC-10 |
1.25-1.45 |
40,50 |
N,7/16 |
|
DTS500 |
500 |
10 |
DC-4 |
1.20-1.50 |
10,20,30,40,50 |
N,7/16 |
