RF & Microwave Low Pass Filters
 | Lowpass Filter
Please Send Us Your Specs for Custom Designs! |
|
Name |
Freq. Range (MHz) |
Insertion Loss (dB) |
Return Loss (dB) |
Rejection |
Power Handling |
Connectors |
|
BF(DC/88)-617NM |
DC-88 |
1.0 |
14 |
≥50dB@110-4000MHz |
50W |
N-Female/N-Male |
|
LP(DC/98)-311B |
DC-98 |
2.0 |
14 |
≥40dBc@108MHz-500MHz |
5W |
BNC-Female |
|
LF(DC/100)-1057S |
DC-100 |
1.0 |
14 |
≥40dB@190-2000MHz |
14 |
SMA-Female |
|
LP(DC/105)-312B |
DC-105 |
2.0 |
14 |
≥40dBc@114MHz |
5W |
BNC-Female |
|
LF(DC/350)-1058S |
DC-350 |
1.0 |
14 |
≥40dB@665-2000MHz |
5W |
SMA-Female |
|
LF(DC/500)-512N |
DC-500 |
1.0 |
12 |
≥35dB@700-1200MHz |
15W |
N-Female |
|
LF(DC/650)-820S |
DC-650 |
1.5 |
13 |
≥40dB@780MHz |
1W |
SMA-Female |
|
LF(DC/880)-959S |
DC-880 |
1.5 |
14 |
≥60dB@1080MHz |
2W |
SMA-Female |
|
LP(DC/960)-1S |
DC-960 |
1.0 |
12 |
≥60dB@1850MHz |
10w |
SMA-Famale |
|
LP(DC/1000)-L01S |
DC-1000 |
1.0 |
11 |
≥50dB@1200-3000MHz |
15W |
SMA-Female |
|
LF(DC/1000)-335S |
DC-1000 |
2.0 |
12 |
≥50dB@2000-8000MHz |
5W |
SMA-Female |
|
LF(DC/1500)-638S |
DC-1500 |
1.0 |
12 |
≥50dB@2000-5000MHz |
30W |
SMA-Female |
|
LP(DC/2000)-L02S |
DC-2000 |
1.0 |
11 |
≥50dB@2300-6000MHz |
15W |
SMA-Female |
|
LF(DC/2500)-543S |
DC-2500 |
1.8 |
12 |
≥40dB@2900-10000MHz |
15W |
SMA-Female |
|
LP(DC/3000)-L03S |
DC-3000 |
1.0 |
11 |
≥50dB@3450-8000MHz |
15W |
SMA-Female |
|
LF(DC/3000)-1025S |
DC-3000 |
1.5 |
14 |
≥50dB@3500-8000MHz |
5W |
SMA-Female |
|
BF(DC/3200)-2S |
DC-3200 |
0.5 |
12 |
≥65dB@5000-15000MHz |
10W |
SMA-Male |
|
LP(DC/4000)-L04S |
DC-4000 |
1.0 |
11 |
≥50dB@4600-10000MHz |
15W |
SMA-Female |
|
LP(DC/5000)-L05S |
DC-5000 |
1.0 |
11 |
≥50dB@5750-12000MHz |
15W |
SMA-Female |
|

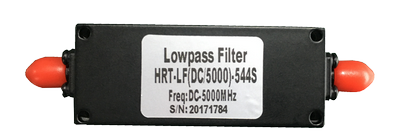

LF(DC/5000)-544S |
DC-5000 |
1.8 |
12 |
≥40dB@5800-10000MHz |
15W |
SMA-Female |
|
LP(DC/6000)-L06S |
DC-6000 |
1.0 |
11 |
≥50dB@6900-14000MHz |
15W |
SMA-Female |
|
LP(DC/7000)-L07S |
DC-7000 |
1.0 |
11 |
≥50dB@8050-15000MHz |
15W |
SMA-Female |
|
LP(DC/8000)-L08S |
DC-8000 |
1.0 |
11 |
≥50dB@9200-16000MHz |
15W |
SMA-Female |
|
LP(DC/8000)-403NM |
DC-8000 |
1.0 |
10 |
≥30dB@9600MHz |
1W |
N-Female/N-Male |
|
LP(DC/9000)-L09S |
DC-9000 |
1.0 |
11 |
≥50dB@10350-16000MHz |
15W |
SMA-Female |
|
LP(DC/10000)-L10S |
DC-10000 |
1.0 |
11 |
≥50dB@11500-18000MHz |
15W |
SMA-Female |
|
LP(DC/10000)-295S |
DC-10000 |
1.0 |
11 |
≥50dB@11500MHz-18000MHz |
15W |
SMA-Female |
|
LP(DC/11000)-L11S |
DC-11000 |
1.0 |
11 |
≥50dB@12650-18000MHz |
15W |
SMA-Female |
|
LP(DC/12000)-L12S |
DC-12000 |
1.0 |
11 |
≥50dB@13800-18000MHz |
15W |
SMA-Female |
|
LF(DC/12000)-455S |
DC-12000 |
1.2 |
11 |
≥25dB@14400MHz |
50W |
SMA-Female/SMA-Male |
|
LP(DC/12400)-404NM |
DC-12400 |
1.0 |
10 |
≥30dB@14900MHz |
1W |
N-Female/N-Male |
|
LP(DC/13000)-L13S |
DC-13000 |
1.0 |
11 |
≥50dB@14950-18000MHz |
15W |
SMA-Female |
|
LP(DC/14000)-L14S |
DC-14000 |
1.0 |
11 |
≥50dB@16100-19000MHz |
15W |
SMA-Female |
|
LF(DC/18000)-982S |
DC-18000 |
1.0 |
14 |
≥50dB@20700-25000MHz |
15W |
SMA-Female/SMA-Male |
|
LF(DC/23000)-948S |
DC-23000 |
1.0 |
13 |
≥50dB@36GHz |
15W |
2.92-Female |
