RF & Microwave > Amplifiers
Low Noise Amplifiers (LNA) | Talent Microwave | LTEQ MICROWAVE Official Distributor

Low Noise Amplifiers (LNA)

Coaxial low-noise amplifier modules (TalentMW family). Frequency coverage from 50 kHz to 67 GHz with SMA / 2.92 mm / 2.4 mm / 1.85 mm connector options.

Coaxial LNA Modules
50 kHz → 67 GHz
SMA / 2.92 mm / 2.4 mm / 1.85 mm
Low Noise • High Linearity
Request a Quote

Selection notes

Pick by frequency band, gain, noise figure (NF), linearity (P1dB) and connector family. Validate full electrical specs and conditions on the datasheet for the exact part number.

  • Broad coverage: LF (kHz/MHz) up to mmWave (67 GHz)
  • Connectors vary by band: SMA, 2.92 mm, 2.4 mm, 1.85 mm (and some special variants)
  • Some rows on TalentMW are marked “Claim” (verify on datasheet)

Models list (Low Noise Amplifier)

Model Min (GHz) Max (GHz) Gain (dB) NF (dB) P1dB (dBm) VSWR Connector Datasheet
TLLA50K20G-18-300.0000520182.5152SMADatasheet
TLLA50K20G-35-300.0000520353152SMADatasheet
TLLA50K20G-30-300.0000520305102SMADatasheet
TLLA50K40G-38-500.0000540385.5141.82.4mmDatasheet
TLLA50K43G-15-500.00005431551422.92mmDatasheet
TLLA50K43G-30-500.00005433051622.92mmDatasheet
TLLA50K50G-38-500.0000550385.5141.82.4mmDatasheet
TLLA50K50G-33-600.0000550326191.92.4mmDatasheet

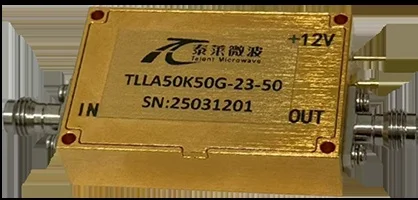

TLLA50K50G-23-500.00005502381522.4mmDatasheet
TLLA50K53G-12-500.00005531251522.4mmDatasheet
TLLA50K67G-12-500.00005671251521.85mmDatasheet
TLLA50K67G-25-500.00005672551521.85mmDatasheet
TLLA0.1M100M-60-200.00010.1602101.5SMADatasheet
TLLA5M700M-24-150.0050.7241.5231.2SMADatasheet
TLLA0.01G0.1G-32-150.010.1321.5201.8SMADatasheet
TLLA10M3G-44-200.013442202.2SMADatasheet
TLLA0.01G26.5G-32-400.0126.5324201.82.92mmDatasheet
TLLA10M40G-30-300.01403032122.92mmDatasheet
TLLA0.01G40G-48-450.0140484.5141.82.92mmDatasheet
TLLA0.01G40G-27-450.0140274.5212.52.92mmDatasheet
TLLA10M50G-50-650.01505051322.4mmDatasheet
TLLA0.01G50G-33-600.0150336191.92.4mmDatasheet
TLLA0.01G67G-25-500.0167255151.81.85mmDatasheet
TLLA0.01G67G-18-500.0167185151.81.85mmDatasheet
TLLA0.02G6G-50-200.026502191.8SMADatasheet
TLLA0.03G6G-38-200.036382132SMADatasheet
TLLA30M6G-35-300.0363531522.92mmDatasheet
TLLA0.03G6G-25-300.036253152SMADatasheet
TLLA0.1G1.5G-30-100.11.5301101.5SMADatasheet
TLLA0.1G2.5G-30-200.12.5302161.5SMADatasheet
TLLA0.1G3G-28-100.13281171.6SMADatasheet
TLLA0.1G4G-36-200.14362102SMADatasheet
TLLA0.1G8G-22-450.18224.5211.8SMADatasheet
TLLA0.1G18G-30-250.118302.5162SMADatasheet
TLLA0.1G18G-12-280.118122.8132SMADatasheet
TLLA0.1G18G-12-300.11812382SMADatasheet
TLLA0.1G20G-27-550.120275.5301.6SMADatasheet
TLLA0.1G26G-28-500.126285211.82.92mmDatasheet
TLLA0.1G26.5G-18-600.126.5186141.8SMADatasheet
TLLA0.1G50G-12-450.150124.5101.82.4mmDatasheet
TLLA0.1G50G-22-450.150224.5101.82.4mmDatasheet
TLLA0.1G50G-27-500.150275131.82.4mmDatasheet
TLLA0.3G20G-14-300.320143102SMADatasheet
TLLA0.4G50G-40-600.4504061822.4mmDatasheet
TLLA0.5G6G-50-180.56501.8102.2SMADatasheet
TLLA0.5G6G-33-250.56352.5202SMADatasheet
TLLA0.5G8G-21-140.58211.4162SMADatasheet
TLLA0.5G8G-32-250.58322.5152SMADatasheet
TLLA0.5G8G-35-200.58352262.5SMADatasheet
TLLA0.5G12G-40-200.512402181.6SMADatasheet
TLLA0.5G18G-31-400.518314152SMADatasheet
TLLA0.5G40G-28-500.540285172.52.92mmDatasheet
TLLA0.5G40G-40-500.540405182.52.92mmDatasheet
TLLA0.5G67G-25-500.5672551521.85mmDatasheet
TLLA0.8G1.6G-32-130.81.6320.5131.4SMADatasheet
TLLA0.8G21G-26-300.821263.5232.22.92mmDatasheet
TLLA0.9G2.5G-15-150.92.5151.5171.6SMADatasheet
TLLA1G1.6G-32-1311.6320.5131.4SMADatasheet
TLLA1G2G-40-1312401.3201.6SMADatasheet
TLLA1G2G-50-1512501.5141.5SMADatasheet
TLLA1G4G-25-0914250.9152SMADatasheet
TLLA1G4G-40-1314401.3161.6SMADatasheet
TLLA1G10G-25-11110251.1162SMADatasheet
TLLA1G18G-13-20118132142SMADatasheet
TLLA1G18G-50-30118482101.7SMADatasheet
TLLA1G18G-27-25118272.5152SMADatasheet
TLLA1G18G-35-25118352.5162SMADatasheet
TLLA1G18G-55-30118553102SMADatasheet
TLLA1G18G-55-25118503152SMADatasheet
TLLA1G40G-36-50140364152.32.92mmDatasheet
TLLA1G40G-42-40140424-1.82.92mmDatasheet
TLLA1G40G-40-45140404.5201.42.92mmDatasheet
TLLA1G40G-36-45140364.52022.92mmDatasheet
TLLA1G40G-15-50140155191.42.92mmDatasheet
TLLA1G40G-40-501404351822.92mmDatasheet
TLLA1G40G-30-60140306221.62.92mmDatasheet
TLLA1.7G2.4G-20-151.72.4201.2132SMADatasheet
TLLA1.5G2.5G-35-101.52.5351151.8SMADatasheet
TLLA1.5G4.5G-15-551.54.5155.5201.8SMADatasheet
TLLA2G4G-40-1524401.5241.6SMADatasheet
TLLA2G8G-50-928500.9131.8SMADatasheet
TLLA2G8G-32-1128351.1151.6SMADatasheet
TLLA2G12G-30-12212301.2152SMADatasheet
TLLA2G18G-12-25218122.5202SMADatasheet
TLLA2G18G-35-40218354202SMADatasheet
TLLA2G20G-30-27220302.7102.3SMADatasheet
TLLA2G40G-40-40240404181.82.92mmDatasheet
TLLA2G40G-30-45240304.51822.92mmDatasheet
TLLA2G40G-27-502402751722.92mmDatasheet
TLLA2.2G2.3G-46-62.22.3460.671.4NDatasheet
TLLA2.2G2.3G-48-072.22.3480.7121.4SMADatasheet
TLLA2.2G2.4G-35-102.22.4361171.5SMADatasheet
TLLA3G8G-21-0938210.9172SMADatasheet
TLLA4G8G-26-0748260.7101.5SMADatasheet
TLLA4G8G-45-0748450.8121.5SMADatasheet
TLLA4G8G-22-1048221-2SMADatasheet
TLLA4G8G-20-1148201.1173.5SMADatasheet
TLLA4G8G-25-1148251.1162SMADatasheet
TLLA4G8G-40-1548401.5161.6SMADatasheet
TLLA4G8G-25-2048252122SMADatasheet
TLLA4G8G-35-2048352271.8SMADatasheet
TLLA4G8G-75-2048752122SMADatasheet
TLLA4G10G-34-19410341.9102SMADatasheet
TLLA4G20G-12-65420126.5211.8SMADatasheet
TLLA4G50G-25-604502561222.4mmDatasheet
TLLA4.9G5.1G-36-64.95.1360.6121.5SMADatasheet
TLLA5G11G-19-30511192.5161.7SMADatasheet
TLLA5G20G-35-3052035314.52SMADatasheet
TLLA6G12G-50-20612502102SMADatasheet
TLLA6G15G-35-13615351.3172SMADatasheet
TLLA6G18G-12-20618122182SMADatasheet
TLLA6G18G-28-20618282172SMADatasheet
TLLA6G18G-39-20618392202SMADatasheet
TLLA6G18G-38-25618382.5222.5SMADatasheet
TLLA6G18G-20-40618204212SMADatasheet
TLLA6G18G-28-40618284282SMADatasheet
TLLA6G18G-41-40618414281.6SMADatasheet
TLLA6G34G-32-35634323.5141.62.92mmDatasheet
TLLA6G26.5G-18-20626.5182132.2SMADatasheet
TLLA7.9G8.5G-52-097.98.5520.9111.5SMADatasheet
TLLA8G12G-22-10812221171.8SMADatasheet
TLLA8G12G-32-10812321121.7SMADatasheet
TLLA8G12G-32-15812321.5202SMADatasheet
TLLA8G12G-35-20812352271.8SMADatasheet
TLLA8G15G-37-10815371161.8SMADatasheet
TLLA8G28G-28-2582827.52.51022.92mmDatasheet
TLLA8G40G-27-45840274.51622.92mmDatasheet
TLLA9G10G-21-2091021218.52.2SMADatasheet
TLLA9.5G10.5G-30-159.510.5301.5271.6SMADatasheet
TLLA10G50G-30-5010503051322.4mmDatasheet
TLLA10G67G-30-5010673051321.85mmDatasheet
TLLA11.75G12.75G-35-1311.7512.75351.3152SMADatasheet
TLLA11.75G12.75G-60-1311.7512.75601.3112SMADatasheet
TLLA12G13G-4013-S1213401.3101.5SMADatasheet
TLLA12G18G-24-111218241.1131.8SMADatasheet
TLLA12G18G-28-141218281.4172SMADatasheet
TLLA12G18G-35-201218352152SMADatasheet
TLLA12G30G-30-2012303022422.92mmDatasheet
TLLA15G30G-50-401530504162SMADatasheet
TLLA17G40G-37-451740374.52822.92mmDatasheet
TLLA18G26G-30-251826302152.22.92mmDatasheet
TLLA18G27G-52-281827522.882SMADatasheet
TLLA18G27G-18-281827182.882SMADatasheet
TLLA18G40G-11-251840112.5112.52.92mmDatasheet
TLLA18G40G-53-301840532.5162.52.92mmDatasheet
TLLA18G40G-25-301840253152.22.92mmDatasheet
TLLA18G40G-36-301840363152.22.92mmDatasheet
TLLA18G40G-36-351840363.5152.22.92mmDatasheet
TLLA18G40G-40-351840403.5122.22.92mmDatasheet
TLLA18G40G-30-6018403062522.92mmDatasheet
TLLA18G40G-40-5018404052022.92mmDatasheet
TLLA18G42G-22-401842224152.52.92mmDatasheet
TLLA18G50G-35-451850354.5142.52.4mmDatasheet
TLLA18G50G-42-5018504251422.4mmDatasheet
TLLA18G50G-22-5018502351422.4mmDatasheet
TLLA20G50G-30-552050305.5211.62.4mmDatasheet
TLLA23.8G24.2G-15-3023.824.215391.82.92mmDatasheet
TLLA23.8G24.2G-18-4523.824.2184.5131.82.92mmDatasheet
TLLA24G44G-40-50-22444405211.82.4mmDatasheet
TLLA25.5G27G-48-2725.527482.7131.6SMADatasheet
TLLA26.5G40G-40-2526.540402.51022.92mmDatasheet
TLLA26.5G40G-30-3026.540303.502.52.92mmDatasheet
TLLA26G40G-35-5026.5403552022.92mmDatasheet
TLLA26.5G50G-18-6026.550186141.82.4mmDatasheet
TLLA32G35G-30-253235302.51022.92mmDatasheet
TLLA33G35G-36-40-WR28-L3335362132WR-28/2.92mmDatasheet
TLLA33G37G-18-353337183.5181.82.92mmDatasheet
TLLA33G67G-47-503367475201.81.85mmDatasheet
TLLA35G50G-44-2035504421222.4mmDatasheet
TLLA35G50G-43-25-GA3550432.51542.4mmDatasheet
TLLA35G50G-35-353550353.51522.4mmDatasheet
TLLA37G42G-20-503742205152.52.4mmDatasheet
TLLA40G50G-40-284050402.8202.22.4mmDatasheet
TLLA40G50G-50-354050503202.62.4mmDatasheet

Source list: TalentMW “Low Noise Amplifier” product table (cid3=32, pages 1–6). Confirm full specs & conditions on the datasheet for the exact PN.
